TU & TUT

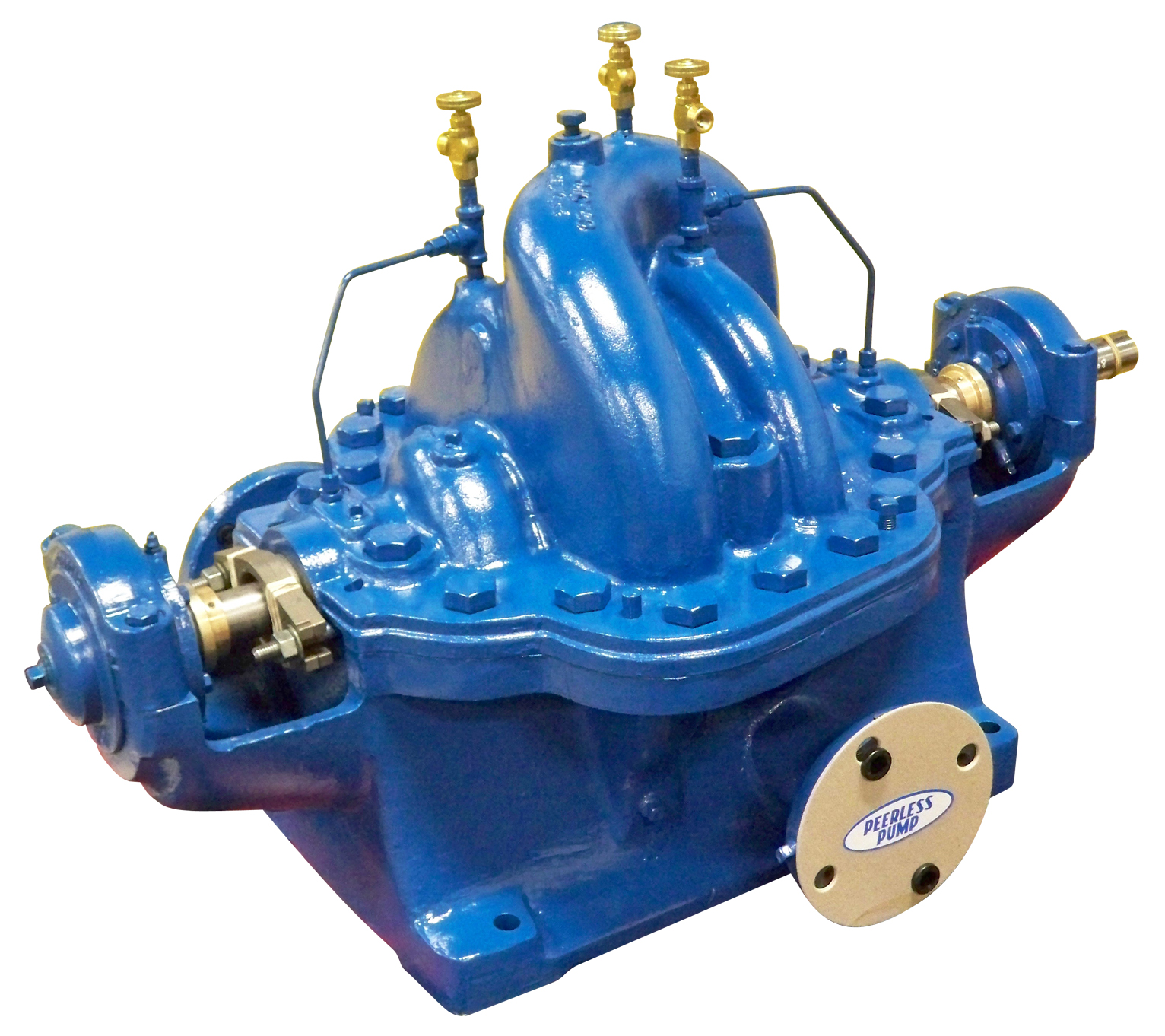

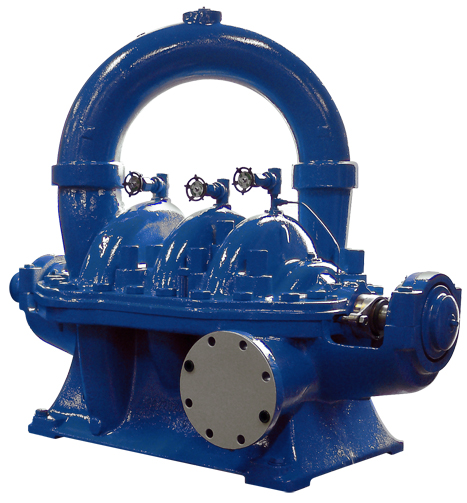

The Peerless TU or TUT pump is a cast iron, bronze-fitted, multi-stage, horizontal split case design. Type TU pumps are a two-stage design, while TUT pumps are three, four and five stage.
Applications
- Boosting
- Water treatment
Specs
Capacities Up to 6,000 gpm (1,636 m3/hr)
Head Up to 1,600 feet (488m )
Pressure Up to 700 psi (48.26 bar)
Horsepower Up to 1,300 hp (969 kW)
Temperature Up to 300°F (149°C)
Drives Motors, engines, steam turbines, combinations
Liquids Water and clear liquids
Materials Cast iron, bronze fitted as standard. Other materials are available.
Features
The multi-stage pump casing material is a minimum of class 40 cast iron. Alternate volutes are reversed, balancing transverse pressures on running members. The bearing bracket supports are cast integral with the lower casing half for permanent alignment of bearings and all rotating parts. Bronze, renewable casing rings are doweled and shouldered in the casing. Cast bronze, enclosed type, single suction impellers are carefully machined and are dynamically balanced for vibration-free performance and longer bearing life. Impellers are keyed to the shaft for positive driving. Bronze impeller wear rings are available on the TU and TUT type pumps.
