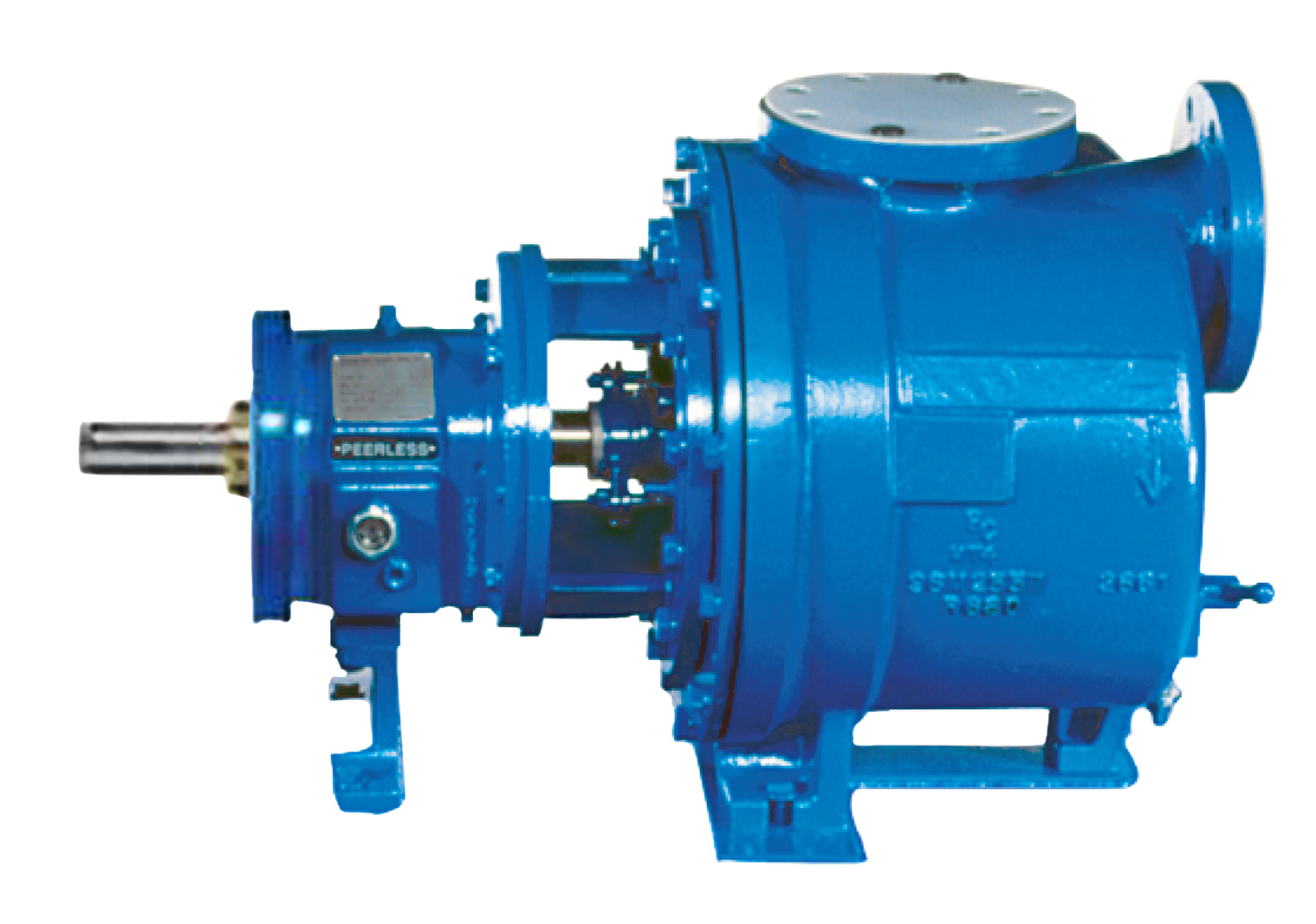

Peerless 8796

Self-priming pump, Suction lift up to 20 feet. Power end is interchangeable with the Peerless 8196 power end. Impeller also available as keyed & bolted to prevent impeller from unthreading. The two-piece casing allows for quick replacement of the inner volute.

See Features

Applications

  • Acids, chemicals or volatile liquids
  • Liquids with large quantities of entrained air or gas, such as in condensate systems or industrial waste treatment
  • Tank car unloading
  • Mine and tunnel de-watering
  • Any application where the pump doesn’t have flooded suction or has to be located away from or above the liquid source

Specs

Capacities Up to 700 gpm (159 m3/h)

Head Up to 400 feet (122 meters)

Pressure Up to 375 psi (2,586 kPa)

Horsepower Up to 40 hp (30 kW)

Temperature Up to 500°F (260°C)

Drives Motors

Liquids Clean liquid sumps, chemical and petroleum transfers

Materials Ductile iron, 316SS, CD4MCu, Alloy 20

Find a Distributor

Features

  • Our special self-priming casing design permits the 8796 pumps to maintain a prime and to expel any air in the suctioned liquid via the self-venting top centerline discharge.
  • The unique two-piece pull-apart casing allows for quick replacement of the inner volute. The inner volute itself can be provided in a variety of wear-resistant materials, such as CD4MCu.
  • Our impellers are a fully open design that resists clogging. Shear is reduced, resulting in lower losses when pumping viscous fluids. All impellers are also available in an optional keyed and bolted design.
  • The bearing frame is coated internally to ensure zero contamination of the oil or bearings from the inside.
  • The VBXD® labyrinth oil seal by Inpro, designed especially for Peerless Pump, provides both static and dynamic sealing to protect bearings from environmental contamination.
  • All bearing fits are precision-bored, and all bearings meet or exceed the minimum ANSI L10 life of 17,500 hours.
  • The shaft is available in solid shaft construction or with a sleeve. The threaded area of the shaft is protected against corrosion with an O-ring seal on the impeller.
  • Integral back pump-out vanes reduce stuffing box pressure, prolonging mechanical seal or packing life.
